Installation

Closed Network

Estimated reading: 1 minute 159 views

Setting up a small, closed network is recommended when you want to connect the Cellair system to a PC, Mac, desktop computer, or tablet with minimal effort. The following materials are required for this setup:

  1. Cellair Hypoxicator
  2. Cellair Software Controller
  3. Switch
  4. Ethernet (LAN) Cable
  5. Desktop PC, MAC, Tablet, or similar

Connect the Cellair Hypoxicator (1) to the switch (3) using a LAN cable (4). Then, connect a PC, Mac, or similar device (5) to the same switch (3) using another LAN cable (4). Connect the Cellair Controller (2) to the right LAN port (DHCP server) on the switch (3).

First, power on the Cellair Controller (2), then turn on the Cellair Hypoxicator and your computer or device.

If everything is connected correctly, your Cellair Hypoxicator should light up green after a short time. The green LED indicates that the Cellair Hypoxicator has been assigned an IP address by the DHCP server in the network.

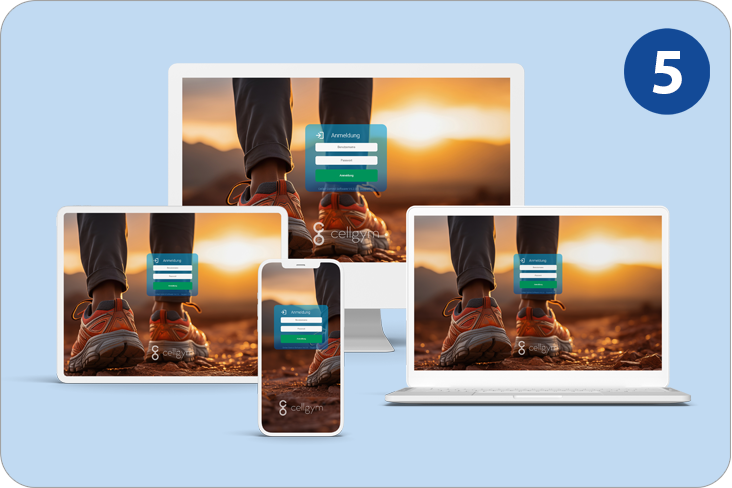

Now, open your browser (Chrome, Firefox, Edge, Safari, or similar) on your PC or Mac and enter the following address in the address bar:

http://192.168.3.1

You can now log into the software on the login screen using the username `admin` without entering a password.
