Integrating the Cellair system into your own network requires an individualized approach that takes into account the existing IT infrastructure. Below are the basic considerations and some best practices that you can use to guide your installation.

Network Connections

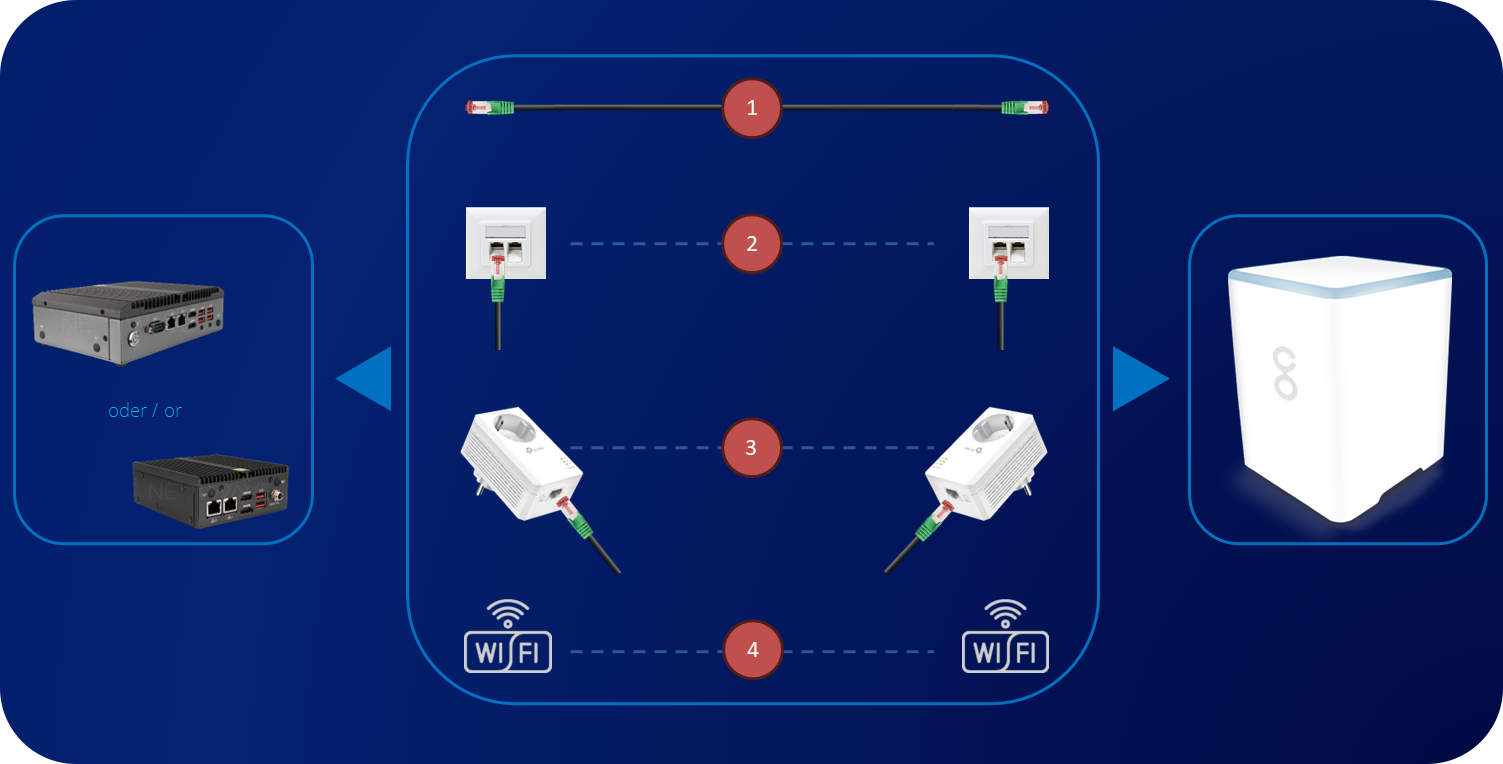

The following diagram illustrates the most common methods for connecting devices within a network.

Network LAN-Cable (CAT 7).
LAN wall sockets, for example, patched in a server room
Powerline outlets that enable connections through the electrical network
Wi-Fi connections, e.g., between a router and a PC

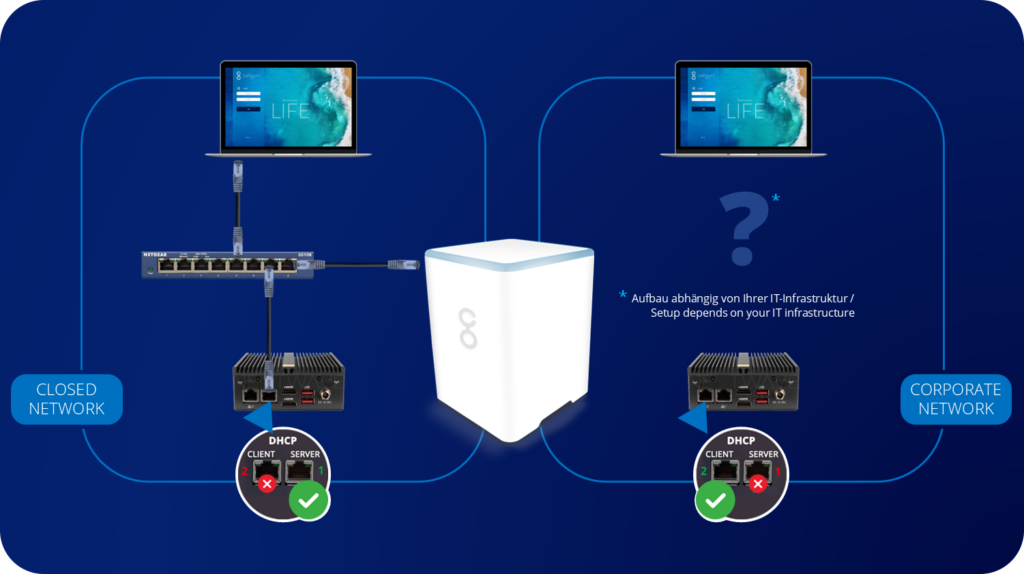

Difference Between DHCP Server and DHCP Client

Depending on whether you are setting up a closed network or integrating Cellgym into your home network, you need to use the correct LAN port on your Cellair Controller. Note that the right LAN port (1) on the Cellair Controller is always configured as the DHCP server, while the left LAN port (2) is configured as the DHCP client.

DHCP Overview

DHCP stands for Dynamic Host Configuration Protocol. It is a network protocol used to automatically assign IP addresses and other network configuration parameters to devices in a network. This simplifies network management, especially in large networks, as IP addresses do not need to be manually configured for each device.

DHCP Server: A DHCP server is a device or software within a network responsible for managing and assigning IP addresses to devices. The server maintains a pool of IP addresses and other network parameters (such as subnet mask, gateway, and DNS server) that it provides to DHCP clients. When a new device connects to the network, it requests an IP address, and the DHCP server assigns one from its pool.

DHCP Client: A DHCP client is a device that requests an IP address and other network settings from a DHCP server. When a DHCP client (e.g., a computer, smartphone, or printer) connects to the network, it sends a request for an IP address to the DHCP server. The server responds by providing the client with an IP address and other necessary configuration parameters.

Never connect the DHCP server port to your network! You must never connect the LAN port (1) with the DHCP server port of the Cellair Controller to your existing home network. Doing so will interfere with any existing DHCP server and can disrupt the IP configuration of your entire network. We do not accept liability for any damages that may result from such an action.

Locate and Fix the IP Address of the Cellair Controller in the Network

In most cases, the DHCP server in your network will be a Wi-Fi router. You can access the login screen of your router’s configuration menu using the URL provided on the router or in its manual. To find the IP address of the Cellair Controller, you will need to log into the configuration menu of your DHCP server.

After logging in, look for the device labeled `cellaircc` in the list of connected devices. This may be found under different menu names depending on the manufacturer, such as Home Network, Network, Network Connections, IP Address, or DHCP List.

Next, you need to fix the IP address for the device cellaircc in this network. Typically, there is an option in a submenu that allows you to reserve the same IP address for this device. Example:

Once you have fixed the IP address in this way, you can access the Cellair Control Software at this address through a browser.

Example of Home Network Integration

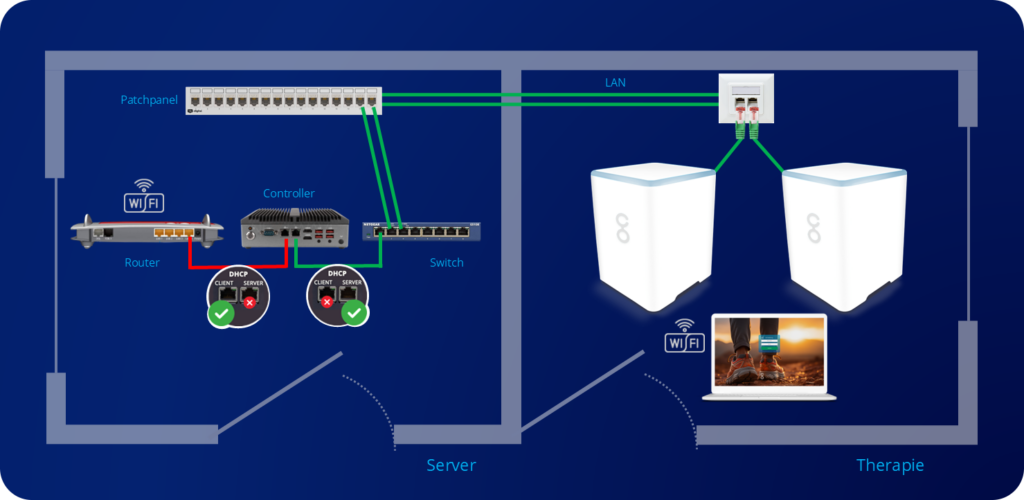

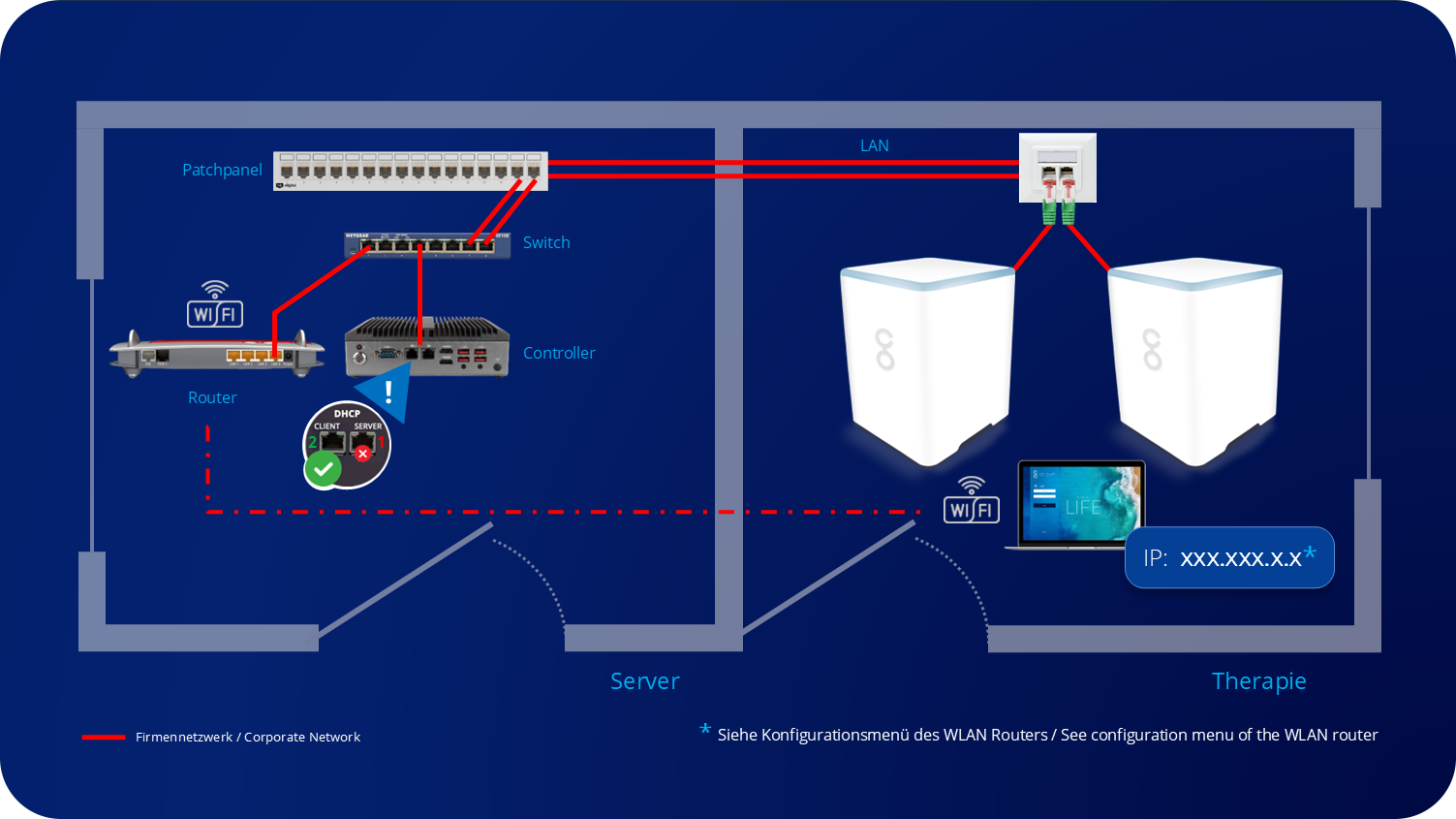

The following diagram shows the integration of Cellair devices into a home network. All LAN connections lead to a switch, and the Cellair Controller is also connected to the switch via LAN port (2) on the Cellair Controller. This allows the Cellair devices and the Cellair Controller to receive their IP addresses from the DHCP server of the home network. In this setup, all connected components receive their IP addresses from the home network’s Wi-Fi router.

Example of Network Integration (Hybrid Setup)

The following diagram shows how the Cellair devices are connected within a separate closed network. All green LAN connections lead to a dedicated switch, which is connected to LAN port (1) of the Cellair Controller. This configuration allows the Cellair devices to receive their IP addresses directly from the DHCP server of the Cellair Controller, keeping them separate from the DHCP of the home network. Additionally, LAN port (2) of the Cellair Controller is connected to the DHCP server of the home network. In this setup, the Cellair Controller receives its IP address from the home network’s Wi-Fi router.

This setup allows computers, laptops, or tablets connected to the network or via Wi-Fi to access the Cellair Control Software using the IP address.
