Cellair® Hypoxicator

The Cellair® Hypoxicator is the innovative core of your training device. It generates high-purity breathing air with varying oxygen concentrations. The device can enrich ambient air (normoxia) with an oxygen content of 20.95% to provide breathing air with up to 34% oxygen (hyperoxia).

Additionally, it produces breathing air that simulates oxygen levels at various altitudes, with oxygen concentrations ranging between 9% and 16% (hypoxia).

Optical Phase Indicator

An LED display allows for uninterrupted visual monitoring of the user during training.

Control & Remote Maintenance

The ports on the device enable control, remote maintenance, and the installation of updates.

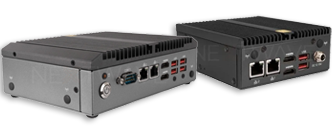

Controller & Cellair® Control Software

The safe control and monitoring of hypoxia training is managed by the Cellair® Controller, which runs the Cellair® Control Software as embedded software.

The user interface of the Cellair® Control Software can be accessed on any operating system (Windows, macOS, Linux, Android) using a standard web browser (Chrome, Edge, Firefox, Safari, Brave, etc.).

Depending on the Cellair® model or specific requirements, the package includes different controllers. These controllers vary in their suitability, with some designed for multi-station setups (1-10 devices) and others intended for a single training station.

Multi-Device

Control and monitoring are possible from any operating system and any workstation.

Additional & Optional Accessories

The package includes accessories necessary for operating the Cellair® Hypoxicator and conducting hypoxia training:

Accessories
  • Power Cable
  • Pulse Oximeter
  • Breathing Tube
  • Mask Connector
  • Breathing Mask, Dual Port
Optional Accessories (as needed, depending on installation type)
  • LAN-Switch
  • LAN-Cable
  • Router TP-Link
  • TP-Link Powerline Kit
Warning

The Cellair® Pro/Home should only be operated with original parts provided by the manufacturer for this device.

Using unsuitable accessories poses a significant safety risk.

Warning

Please note that the breathing masks are for single use only. Reuse may lead to contamination or infection.
